RAW (DMX+ILDA) 1.7W

Product Overview

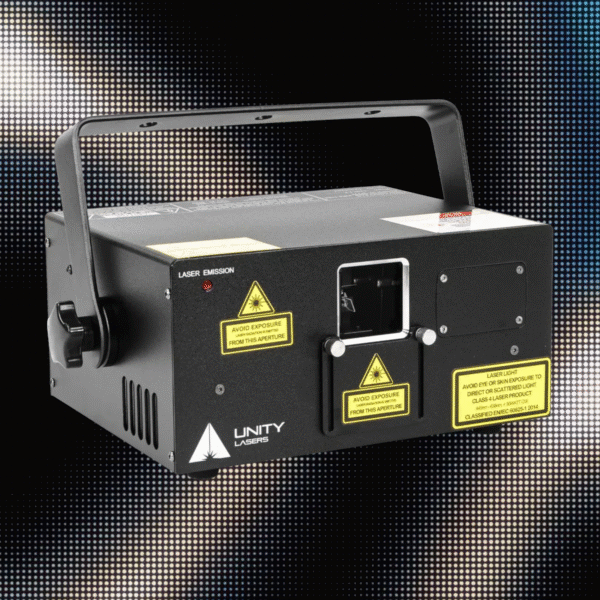

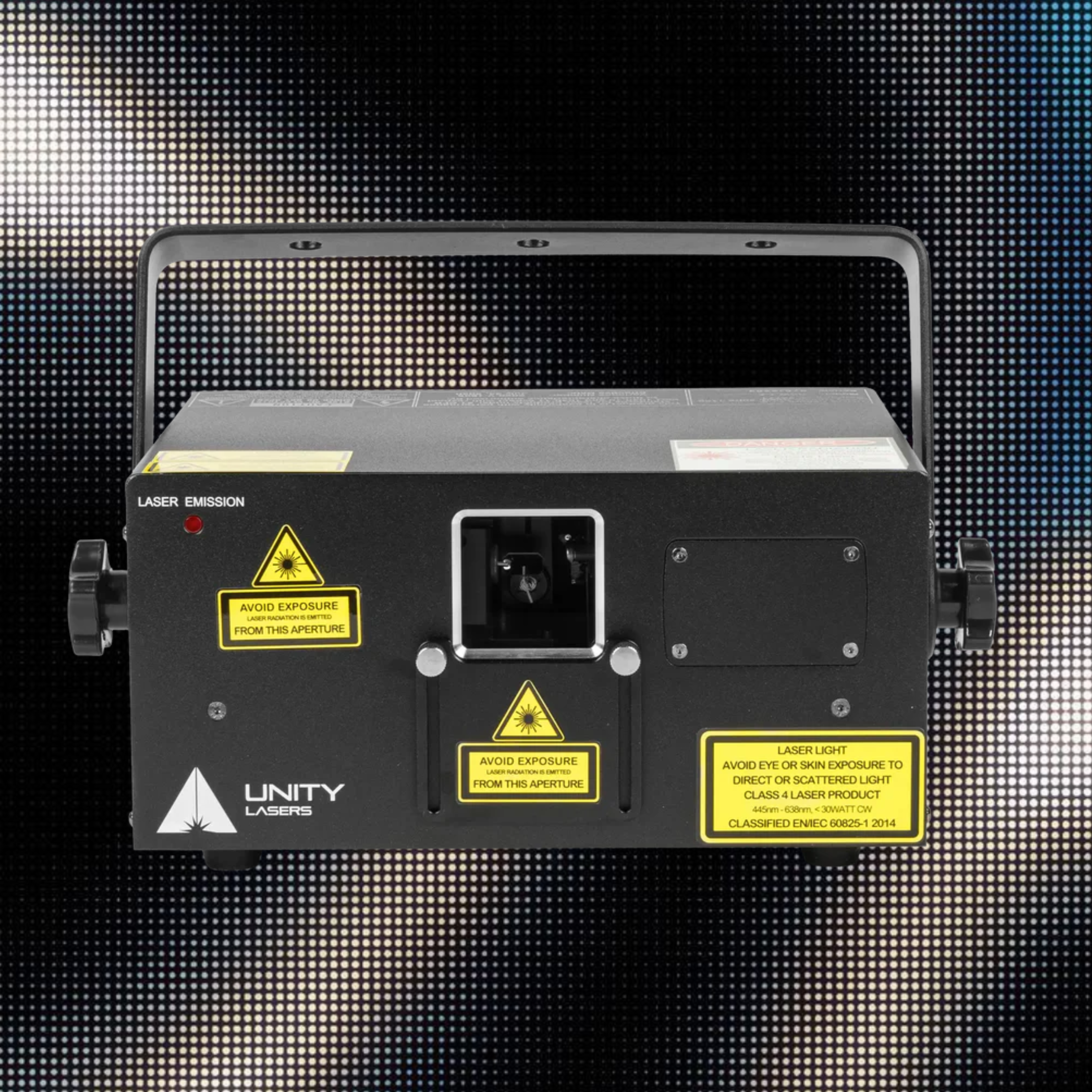

RAW 1.7 (DMX+ILDA)
The RAW 1.7 (DMX+ILDA) is an entry-level full-colour semiconductor diode laser system made for DJs, clubs, hobbyists, and small indoor venues. With over 1.7W of guaranteed optical output and smooth 30,000 PPS scanning, it’s a solid option for creating beam shows, custom text, graphics, and projection mapping. Designed with simplicity and expandability in mind, it supports DMX and ILDA control — making it ideal for beginners and experienced users alike who use software like Pangolin FB3QS with QuickShow.

Key Features

• Laser Type: Full-colour semiconductor diode laser

• Control Modes: DMX mode, ILDA mode, and sound active mode

  • Recommended software for ILDA: Pangolin FB3QS + QuickShow

• Modulation: Analog 50kHz

• System Adjustments:

  • Independent RGB power control

  • X/Y position, size, and axis invert

  • Digital display for DMX addressing and system settings

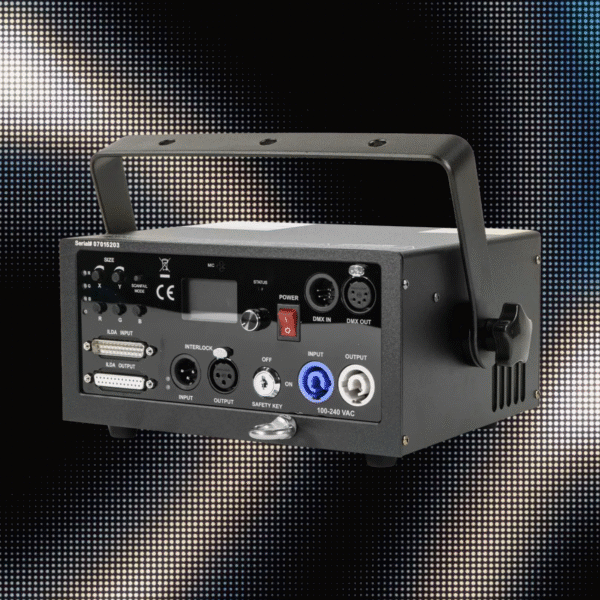

  • Connectivity: DMX in/out, ILDA in/out, Estop in/out, power in/out

Technical Specifications

• Guaranteed Optical Output: >1.7W

• R | G | B [mW]: 350 | 500 | 1,000

• R | G | B [Wavelength]: 638nm | 520nm | 450nm

• Beam Size: 5 x 3 mm

• Beam Divergence: <1.1 mrad (Full Angle)

• Scanning System: 30,000 Points Per Second @ 8°

• Scan Angle: 45°

• Ingress Rating: IP4X

• Operating Temperature: 10–40 °C

• Power Requirements: 100–230V / 50Hz

• Power Consumption: Max. 100W

• Dimensions: 238 mm (D) x 192 mm (W) x 126 mm (H)

• Weight: 5.3 kg

Laser Safety Features

• Keyed interlock

• Emission delay

• Magnetic interlock

• Scan-fail safety

• Mechanical shutter

• Adjustable aperture masking plate

What’s Included

• RAW 1.7 Laser Projector

• Emergency Stop Box

• Estop Cable (10M / 30ft)

• ILDA Cable (10M / 30ft)

• Power Cable (1.5M / 4.5ft)

• Interlock

• Keys

• User Manual & Quickstart Guide

• Variance Card

• Service dongle included if purchased outside the U.S.

• Carton Packaging

Notice

Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
