RAW (DMX+ILDA) 3W

Product Overview

RAW 3 (DMX+ILDA)

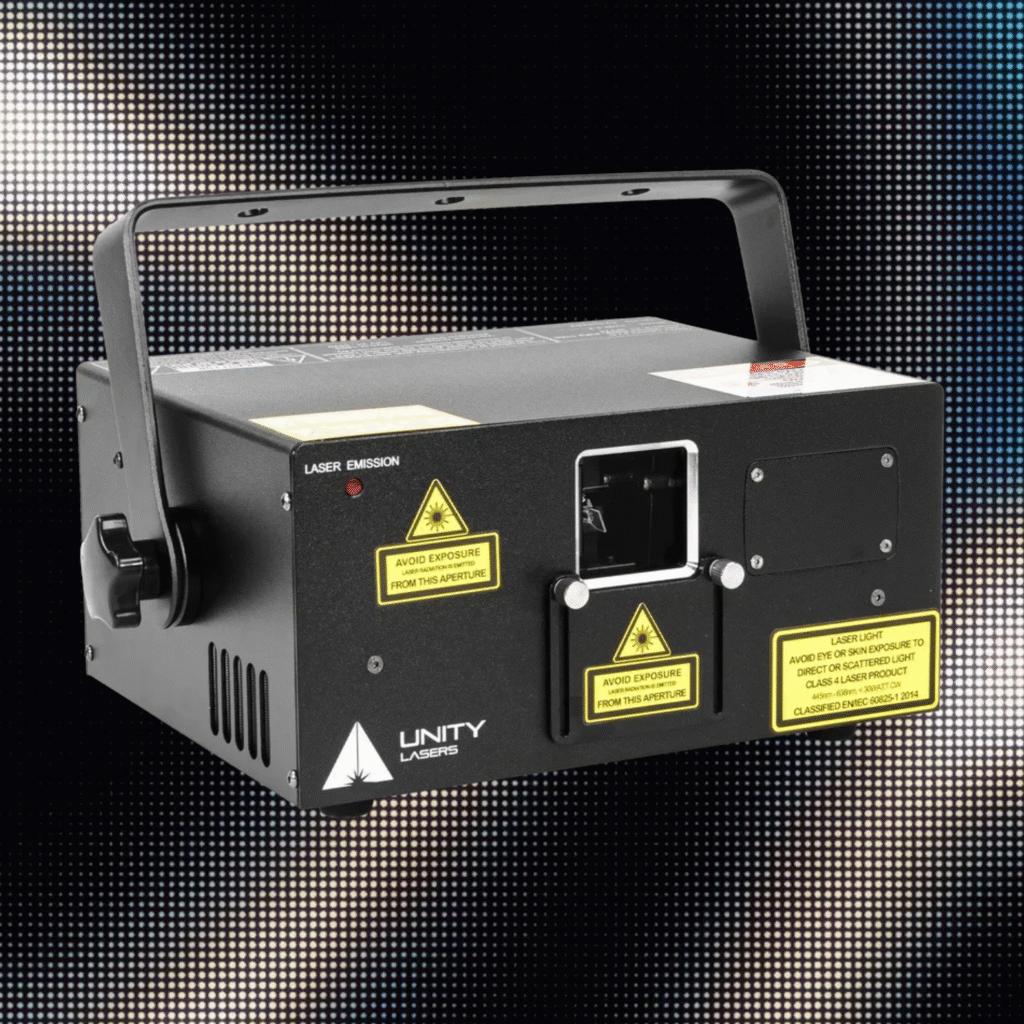

The RAW 3 (DMX+ILDA) is a compact and reliable full-colour semiconductor diode laser system designed for DJs, clubs, and medium-sized indoor venues with up to 3,000 attendees. It outputs over 3W of guaranteed optical power and features 30,000 PPS scanning at 8°, enabling detailed beam shows, sharp text, graphic displays, and projection mapping. With support for DMX and ILDA control, it’s ideal for users seeking a plug-and-play system with room for creative expansion via ILDA and software like Pangolin FB3QS with QuickShow.

Key Features

• Laser Type: Full-colour semiconductor diode laser

• Control Modes: DMX mode, ILDA mode, and sound active mode

  • Recommended software for ILDA: Pangolin FB3QS + QuickShow

• Modulation: Analog 50kHz

• System Adjustments:

  • Independent RGB power control

  • X/Y position, size, and axis invert

  • Digital display for DMX addressing and system settings

  • Connectivity: DMX in/out, ILDA in/out, Estop in/out, power in/out

Technical Specifications

• Guaranteed Optical Output: >3W

• R | G | B [mW]: 500 | 800 | 1,700

• R | G | B [Wavelength]: 638nm | 525nm | 455nm

• Beam Size: 5 x 3 mm

• Beam Divergence: <1.1 mrad (Full Angle)

• Scanning System: 30,000 Points Per Second @ 8°

• Scan Angle: 45°

• Ingress Rating: IP4X

• Operating Temperature: 10–40 °C

• Power Requirements: 100–230V / 50Hz

• Power Consumption: Max. 100W

• Dimensions: 238 mm (D) x 192 mm (W) x 126 mm (H)

• Weight: 5.3 kg

Laser Safety Features

• Keyed interlock

• Emission delay

• Magnetic interlock

• Scan-fail safety

• Mechanical shutter

• Adjustable aperture masking plate

What’s Included

• RAW 3 Laser Projector

• Emergency Stop Box

• Estop Cable (10M / 30ft)

• ILDA Cable (10M / 30ft)

• Power Cable (1.5M / 4.5ft)

• Interlock

• Keys

• User Manual & Quickstart Guide

• Variance Card

• Service dongle included if purchased outside the U.S.

• Carton Packaging

Notice

Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
